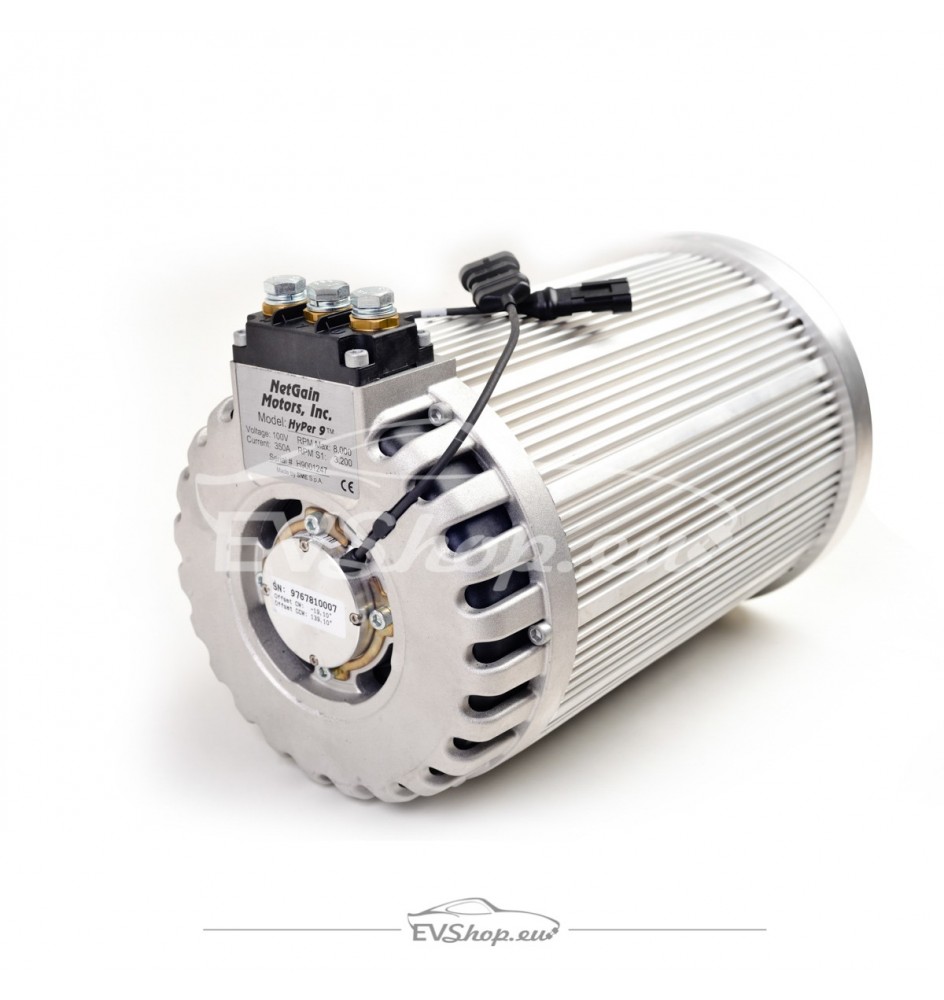

Hyper9 HV or 9DHV 180V 88kW

This motor has an 8.66" diameter and weighs 120 lbs. The HyPer 9HV ™ is a higher voltage version of our already impressive HyPer 9 ™ Motor.

NETGAIN
SRIPM225-H9HV
10 Items
Hurry up! only 10 items left in stock!
Type: single or dual shaft?: Single Shaft Motor - 1.125" keyed Drive End Shaft, No Encoder end Shaft
€2,600.00
Tax excluded Delivered within 3-14 days
Available

Hyper 9 HV or 9DHV 180V 88kW

SRIPM Motor wound for optimal performance with 144V input.

This is a Synchronous Reluctance Internal Permanent Magnet motor which produces 163 lb/ft peak torque. This industry leading technology combines highly efficient and cost effective Synchronous Reluctance design with the torque producing forces of Permanent Magnets.

Characteristics:

Single or Double ended Shaft
In case of Dual Shaft Motors, the Encoder End shaft and bolt pattern match the Commutator End of WarP 9 ™ Motors
Brushless Motor
Cageless Rotor - Higher Efficiency, No Rotor Heat
No Rotor Slip
Up 8,000 RPM
Up to 95% Efficiency
Up to 50% higher torque than similar sized AC Induction motors running at the same power levels
Astounding performance in field weakening area with +50% power up to 5 times nominal speed
IP54 Protection
Robust and Reliable

SRIPM225-H9HV
10 Items

Do you want additional information regarding this product?


Ask your question
