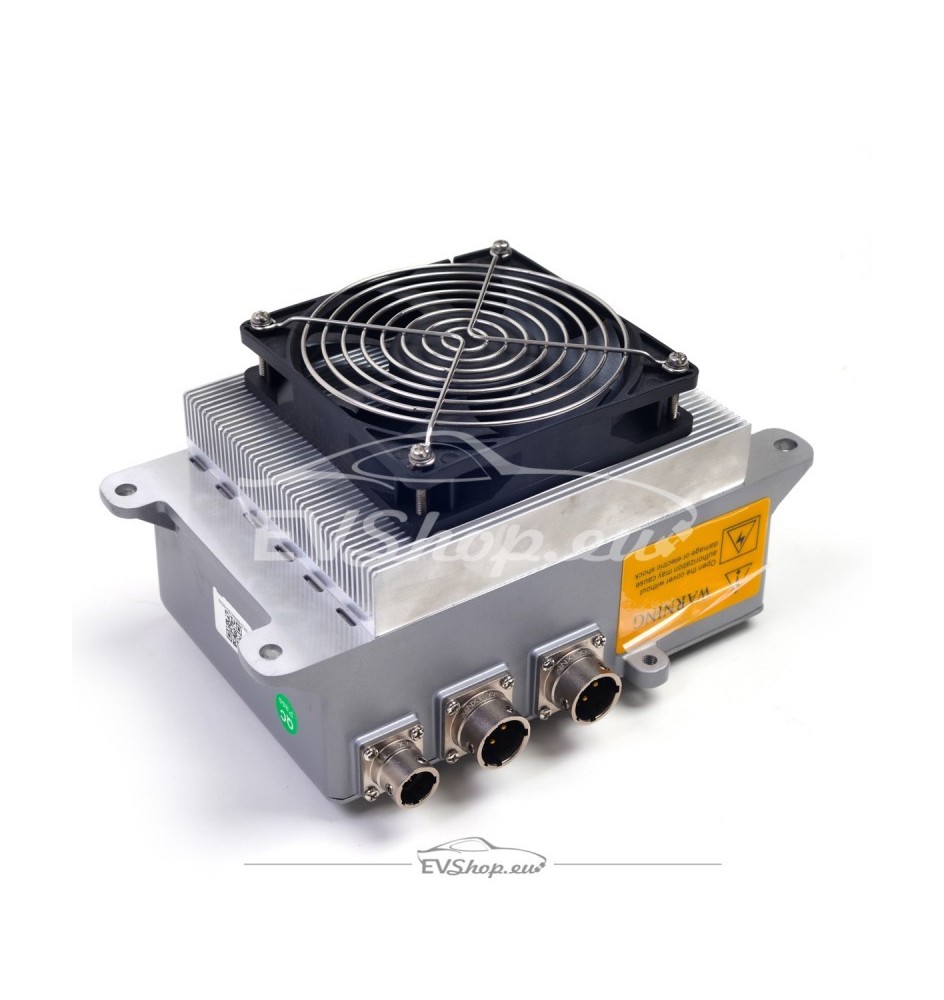

EVPT23-9632 3,3kW CAN, 96V (64-128V) - 32A

3.3kW EVPT23-9632 is designed for electric vehicle LiFePO4/lithium and battery management system interface. It's a charger with high efficiency, high stability, small size, small volume and high protection grade(IP67).

Connectors included.

EVPT
EVPT23-9632
13 Items
Hurry up! only 13 items left in stock!
€650.00
Tax excluded Delivered within 3-14 days
Available

EVPT23-9632 3,3kW CAN, 96V (64-128V) - 32A

1. Up to 95% power efficiency and more than 93% Full Load efficiency
2. Wide input voltage range AC90V~AC265V 45~65 Hz available for worldwide requirements, convenient for electric-network fluctuation and vehicles exportation.
3. Intelligent temperature compensation function in the charging process, preventing the damage to battery caused by charge-off or charge due, greatly extending the lifespan of battery.
4. Fully-sealed and water-proof, protection class IP67(Effective against dust tight and Protection against Immersion, up to 1 m depth).
5. Automotive-grade seismic rating.
6. Temperature control with built-in heat-sensing device and automatic recover through the thermal protection.
7. Multi-safety protection functions.
8. LED charge status indication with diagnose support function.
9. Available for various kinds batteries like LiFePO4, Lithium battery etc. Equipped with CAN communication interface to realize real-time communication with BMS for options.

Basic Model

Nominal Voltage

Output voltage Range

Output current -Maximum

(CV Setting Range)

(Max CC setting)

EVPT23-4840

48V

32-64V

40A

EVPT23-6040

60V

40-80V

40A

EVPT23-7240

72V

48-96V

40A

EVPT23-9632

96V

64-128V

32A

EVPT23-14423

144V

96-192V

23A

EVPT23-21615

216V

144-288V

15A

EVPT23-32010

320V

200-420V

10A

EVPT23-36009

360V

240-450V

9A

EVPT23-54006

540V

360-700V

6A

EVPT23-9632
13 Items

Do you want additional information regarding this product?


Ask your question


Question & Answer:

Q : For item: https://evshop.eu/en/chargers/502-evpt23-9632-33kw-can-96v-64-128v-32a.html Can you tell us whats the communication protocol, please?

A: Hello, You can find CAN protocol online, next to the product description /product details/attachments : https://evshop.eu/en/index.php?controller=attachment&id_attachment=164 Thanks!
