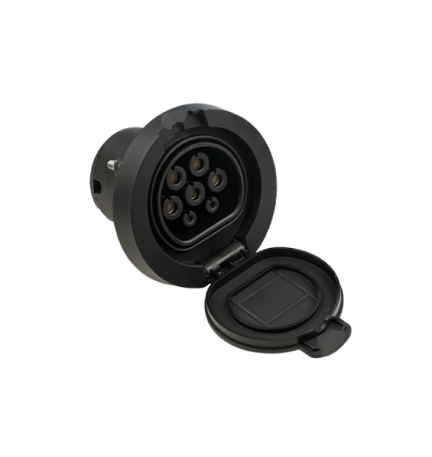

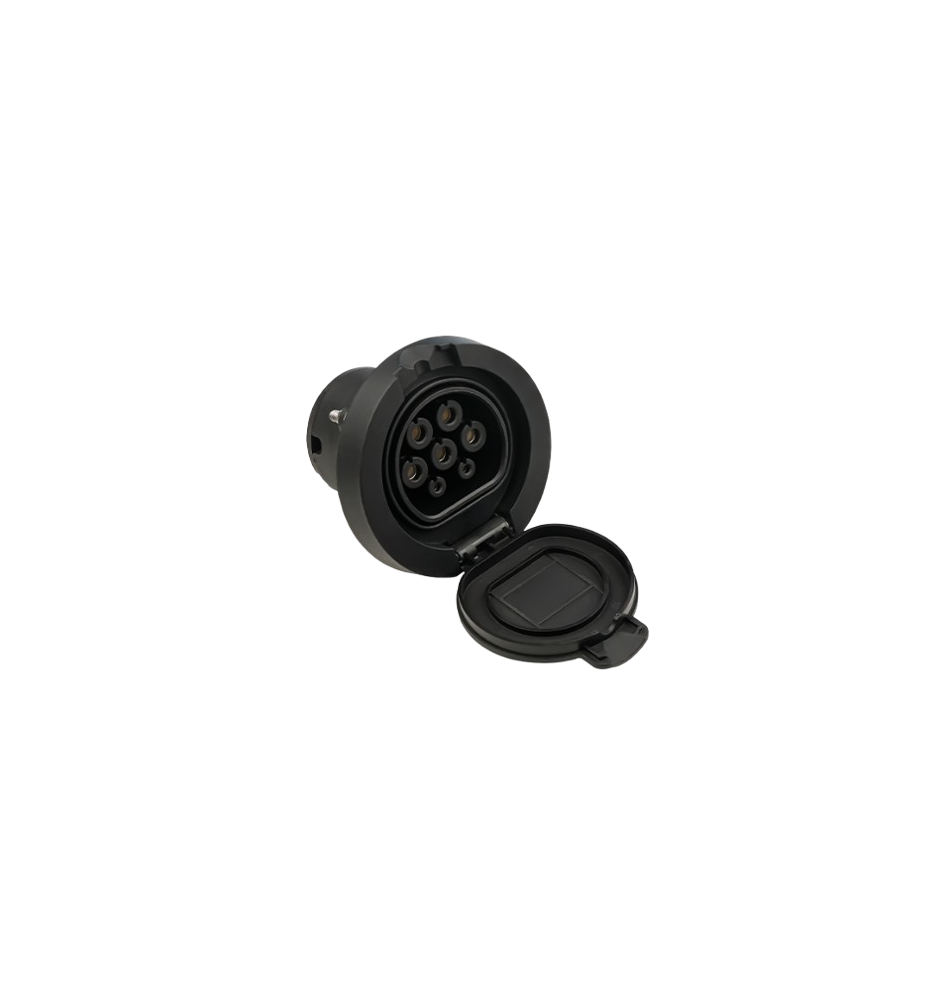

Besen EV Charging Socket – Type 2 / IEC 62196-2
The BS-EVSC003-1/3Phase socket is designed according to the European charging standard IEC 62196-2. It is a reliable solution for EV charging station manufacturers, built with solid materials and good quality contact pins.
Besen EV Charging Socket – Type 2 / IEC 62196-2
The BS-EVSC003-1/3Phase socket is designed according to the European charging standard IEC 62196-2. It is a reliable solution for EV charging station manufacturers, built with solid materials and good quality contact pins.
Product Overview:
- Rated for over 20,000 uses
- Silver-plated pins for better conductivity
- Overheat-resistant and safe to use
Input & Output:
- Rated current: 16A / 32A – 1/3 phase
- Working voltage: 240V AC
- Insulation resistance: >1000MΩ
Working Environment:
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5mΩ Max
- Working temperature: -30°C ~ +50°C
Materials:
- Shell material: Thermo Plastic
- Contact pin: Copper alloy, silver or nickel plated
- Sealing gasket: Rubber or silicone rubber
BS-EVSC003-1/3Phase
The BS-EVSC003-1/3Phase socket is designed according to the European charging standard IEC 62196-2. It is a reliable solution for EV charging station manufacturers, built with solid materials and good quality contact pins.
